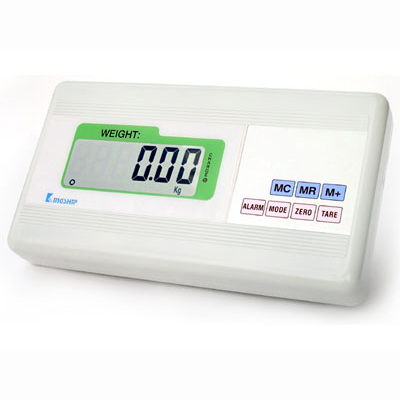

GRW Weighing Indicator

The GRW-IN Series Weighing indicator is a high performance indicator with up to 1/15000 display resolution. Equipped with 30mm large LCD display for customer to conveniently read the weighing result. The GRW-IN is a perfect weighing scale for industrial application.

Optional Device:
• LCD Backlight
• RS-232 or Relay Output Interface

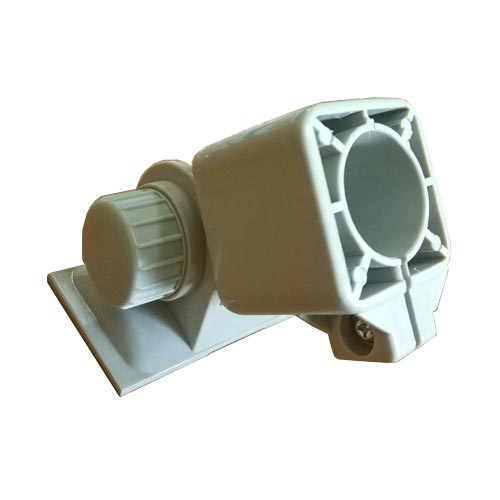

• Adjustable regulator

Compatible structure:

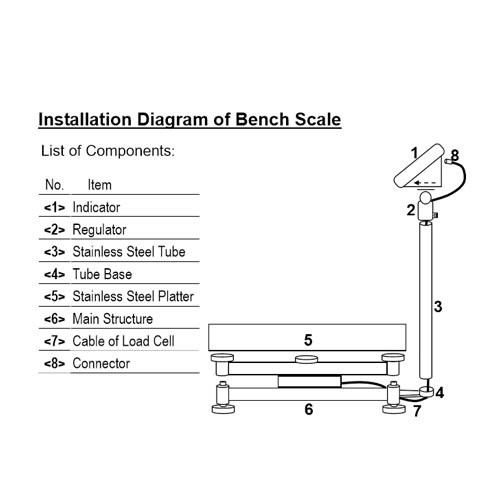

Platform scale structure
Floor scale structure

分享到

 Features

• 30mm Front-Side LCD Display

• Simple counting function

• Accumulation Function

• Weight Unit: kg / lb / oz / pcs available

• Weight Checking Function (Hi / Low Limit setting)

• Give-Change Function

• Energy-Saving Function

• Low Power and Charging Status Indication

 Specifications

Capacity

Model

Capacity

Division

Division

Division

GRW-IN-60

60kg

20g

10g

5g

GRW-IN-150

150kg

50g

20g

10g

GRW-IN-300

300kg

100g

50g

20g

GRW-IN-600

600kg

200g

100g

50g

Display

30mm Large LCD Display

Keyboard

8 keys tactile

Weighing Units

Kg / lb / oz / pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

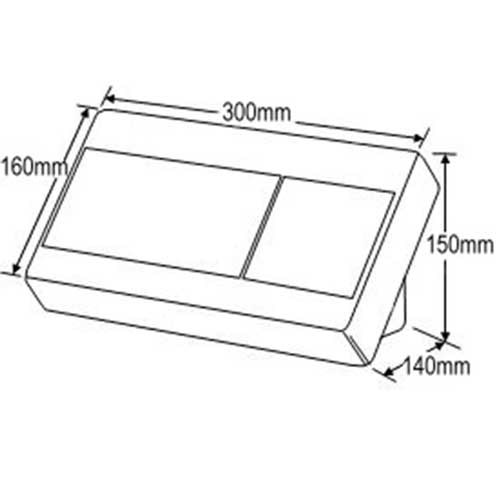

Dimensions

300mm x 160mm x 150mm (WxDxH)

Packing

Shipping Carton: 6units/CTN; 4.9CUFT
N.W.: 15.40kg / G.W.: 20.66kg



♦  Place of Origin: MADE IN TAIWAN
