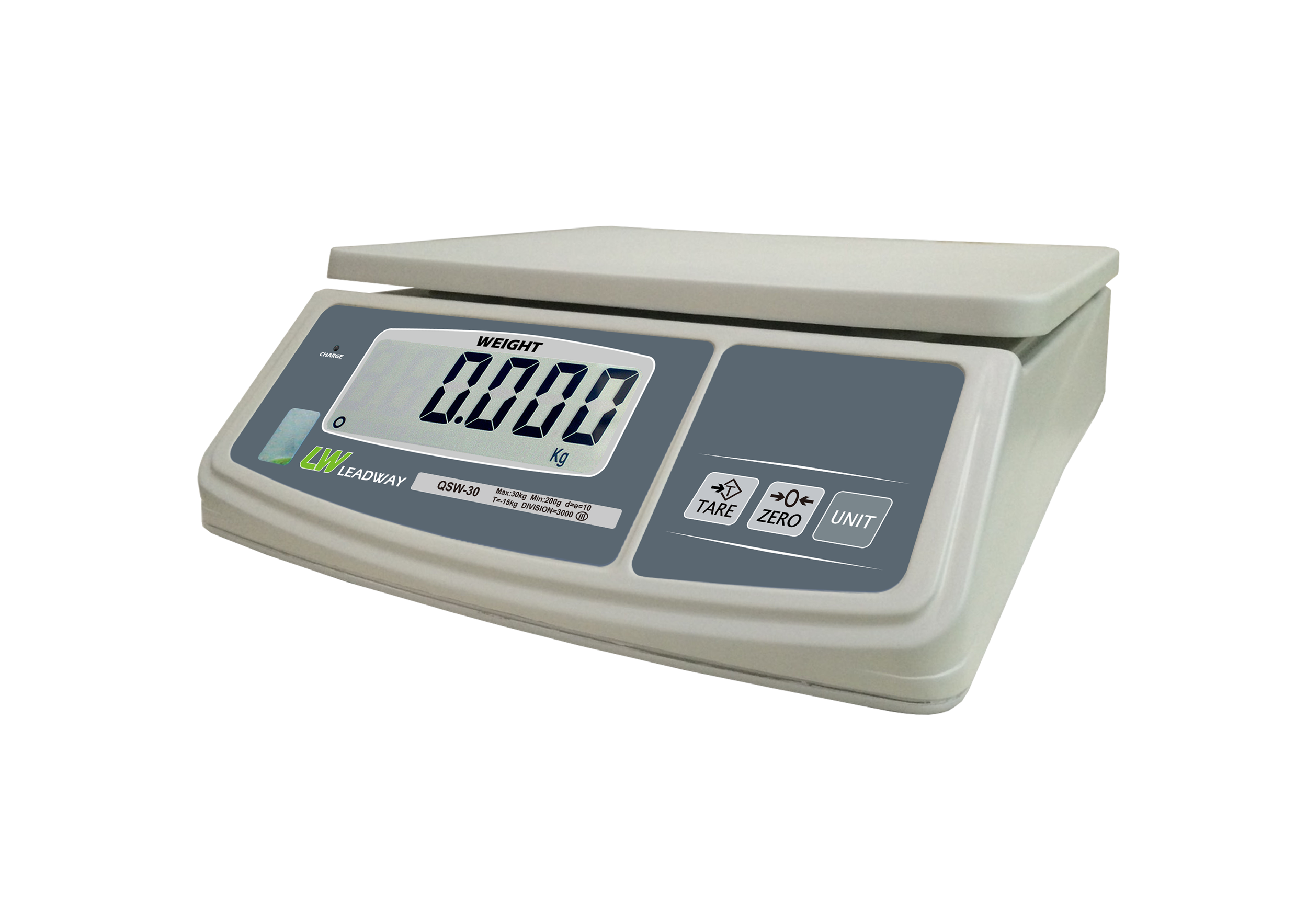

QSW Digital Weighing Scale

QSW digital weighing scale are perfectly used in factories, schools, offices, home use and a wide range of other various weighing applications. It features large and easy-to-read LCD display, accurate performance and also function of energy-saving. this SSW scale makes the user operate much more conveniently and user friendly.

Optional Device:
• RS-232 Interface


Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval
◆ OIML Certificate R76/2006-a-NL1-21.44

分享到

 Features

  • 30mm large LCD display. Easy to read.
  • Available for single interval or multiple range division
  • Auto zero point tracking
  • Tare function
  • Weight unit: kg/pcs available
  • Simple counting function
  • Energy-saving function
  • Low power & charging status indication
  • Plastic and Stainless steel platter included

 Specifications

Model/Capacity

Model

Capacity

Division

QSW-3

3kg

1g

QSW-6

6kg

1g/2g

QSW-15

15kg

2g/5g

QSW-30

30kg

5g/10g

Display

6 digits LCD 30mm

Keyboard

3 keys

Weighing Units

kg/pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10°C ~ 40°C (14°F ~ 104°F)
Humidity: <80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without backlight)
AC: 110V or 220V ± 10%, 50/60Hz

Overall Dimensions

Scale: 284 x 384 x 100 mm (WxDxH)
Platter: 273 x 212 mm (WxD)

Packing

Shipping Carton: 3 units/CTN; 2.9CUFT
N.W.: 11.88kg / G.W.: 14.60kg



♦ Place of Origin: MADE IN CHINA

KINGSHIP WEIGHING MACHINE CORP.
