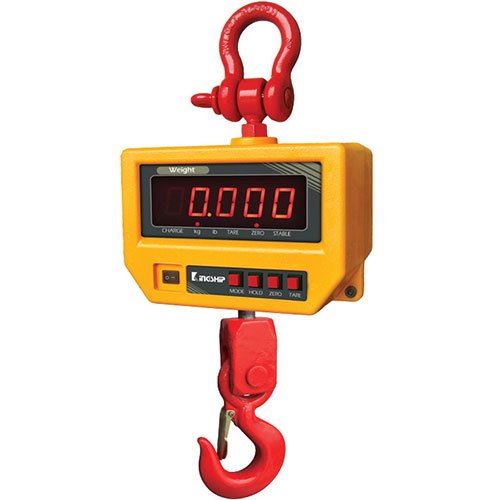

CW Crane Scale

This model is a versatile, economical solution for overhead material handling and weighing application. Equipped with a brilliant and easy-read LED with wide view-angle and includes the industry’s easiest operation and an optional remote control with 20 m distance which makes the operator’s job even simpler. Rugged and reliable construction makes it tough enough to endure different conditions required of any portable crane scale.

Power Source:
• DC_4Ah/6V Rechargeable Battery

Optional Device:
• Remote controller

分享到



 Features

• Max Capacity: 600kg ~ 5ton

• Auto Zero Point Tracking

• Tare Function

• Hold Function

• Auto Power-off ; Energy-Saving Mode

• Low Power and Charging Status Indication

• 360° Freely Swiveling Hook; Easy to Operate

• Rugged and Reliable Construction (suitable for all kinds of heavy-duty measurements)



 Specifications

Model/Capacity

Model

Capacity

Division

CW - 1T

1000kg

0.2kg

CW - 2T

1500kg

0.5kg

CW - 3T

3000kg

0.5kg

CW - 5T

5000kg

1kg

Display

5 digits, 7-segment LED (2.54cm high)

Keyboard

4 buttons

Weighing Units

Kg / lb

Stabilization

3 sec

Tare Range

100% of full-scale capacity

Calibration

External calibration

Operating Environment

Temperature : 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(80 hours)
AC: 110V or 220V ± 10%, 60Hz/50Hz

Overall Dimensions

Scale: 255mm x 190mm x 610mm (WxDxH)

KINGSHIP WEIGHING MACHINE CORP.
