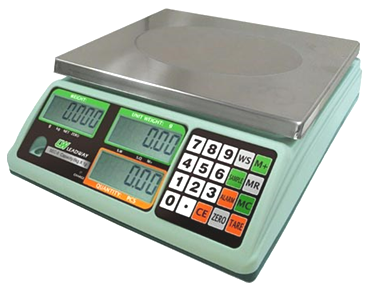

SEC Counting Scale

The SEC counting scale provides user high accuracy and perfect performance of weighing needs. This model equip with 3 pre-set memory keys for saving unit weight setting. Preset count and weight limits can be set to alarm the operator that a requested quantity or desired weight has been achieved.

Optional Device:
• RS-232 interface or Relay Output Interface

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval

分享到

 Features

• 17.5mm LCD Display with backlight

• M1~M3 Memory keys for saving unit weight

• Counting Operation by sample-quantity or unit weight

• Quantity Alarm setting

• Weight Checking Function (Hi / Low Limit setting)

• Energy-Saving Function

• External Digital-Calibration

• Low Power and Charging Status Indication

• Stainless Steel & Plastic Platter

 Specifications

Model/Capacity

Model

Capacity

Division

SEC-3

3kg

1g

SEC-6

6kg

1/2g

SEC-15

15kg

2/5g

SEC-30

30kg

5/10g

Display

6,6,6 digits - LCD

Keyboard

20 keys

Memory Keys

3 keys

Weighing Units

kg / g

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

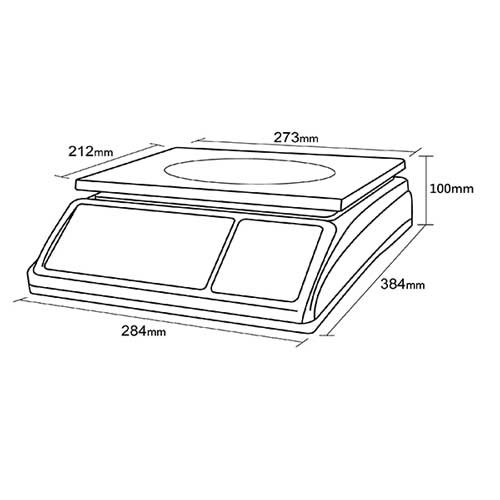

Overall Dimensions

Scale: 284mm x 384mm x 100mm (WxDxH)
Platter: 273mm x 212mm (WxD)

Packing

Shipping Carton: 3units/CTN; 2.9CUFT
N.W.: 11.88kg/G.W.: 14.60kg



♦ Place of Origin: MADE IN CHINA

KINGSHIP WEIGHING MACHINE CORP.
