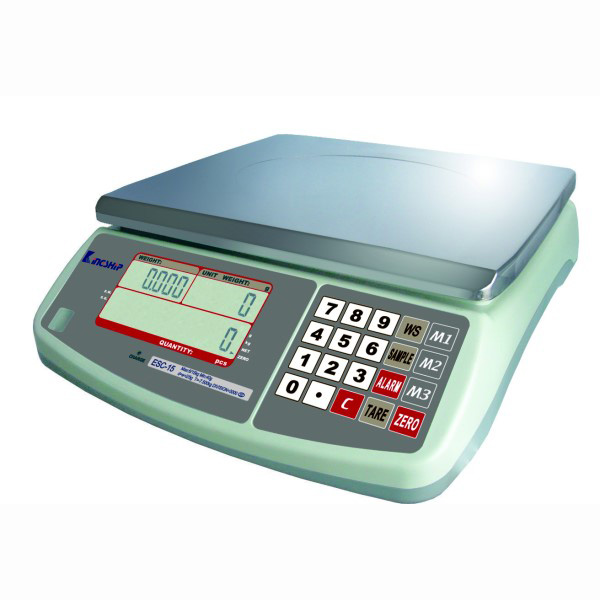

ESC Counting Scale

The ESC series is a high quality counting scale with elegant and streamlined appearance. This digital counting scale equipped with easy-to-read large LCD display and easy-to-operate user interface. This ESC series achieves a more precise count for small parts. This counting scale could perform very well with the steady weighing results under any kind of industrial application.

Optional Device:
• RS-232 or Relay output Interface

Certificates:
• OIML Certificate(No.R76-2006-A-NL1-19.14)
• Examination Certificate(No.TC7646R9)
• EC type-approval Certificate

分享到

 Features

  • 17.5/19mm Front-Side LCD display
  • With Single-Interval or Multi-Range Division
  • Auto Zero-Point Tracking
  • Tare Function
  • Counting Operation by Sample-quantity or Unit Weight Setting
  • up to 99 data accumulation and 18 data recall(need to be equipped with outer Label Printer for approved model)
  • Quantity Alarm Setting
  • Weight Checking Function (High / Low Limit Setting)
  • Energy-Saving Function
  • Low Power & Charging Status Indication
  • External Digital-Calibration
  • Gravity-Value Setting
  • Stainless Steel Platter

 Specifications

MODEL

Capacity

Division
(Dual range)

Division
(Single range)

ESC-6

6kg

1g/2g

2g

ESC-15

15kg

2g/5g

5g

ESC-30

30kg

5g/10g

10g

ESC-60

60kg

10/20g

20g

ESC-105

105kg

20/50g

50g

Display

6 digits Large LCD Display

Keyboard

25 keys tactile

Weighing Units

Kg / pcs

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

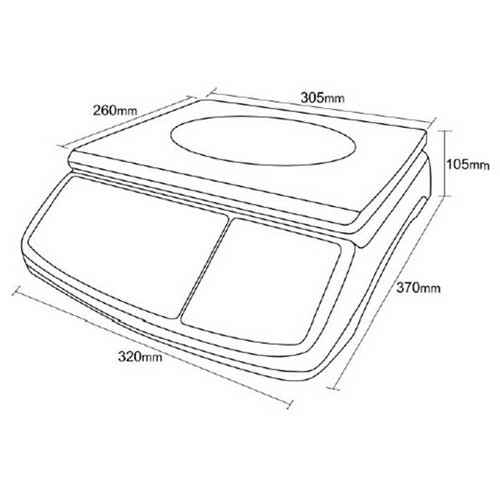

Overall Dimensions

Scale: 320mm x 370mm x 105mm (WxDxH)
Platter: 305mm x 260mm (WxD)

Packing

Shipping Carton: 3units/CTN; 4.3CUFT
N.W.: 14.60kg / G.W.: 18.9kg


♦ Place of Origin: MADE IN TAIWAN

KINGSHIP WEIGHING MACHINE CORP.
