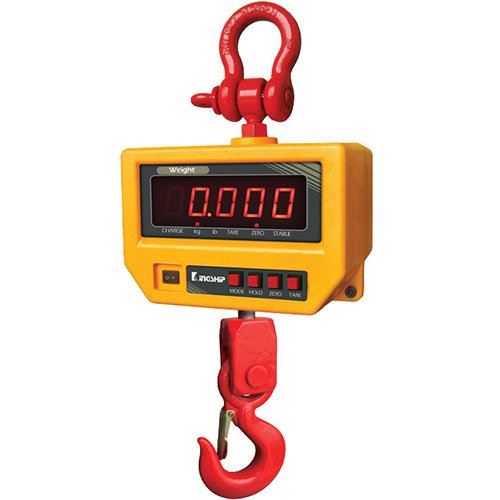

VQW Crane Scale

This model is a versatile, economical solution for overhead material handling and weighing application. Equipped with a brilliant and easy-read LED with wide view-angle and includes the industry’s easiest operation and an optional remote control with 20m distance which makes the operator’s job even simpler. Rugged and reliable construction makes it tough enough to endure different conditions required of any portable crane scale. Install the professional load cell with VQW scale has very reliable weighing performance.

Power Source:
• DC_4Ah/6V Rechargeable Battery
• AC: 110V or 220V ± 10%

Optional Device:
• Remote controller

分享到



 Features

• Max Capacity: 3 ton, 5ton, 10ton

• Tare/Auto Zero Point Tracking

• Hold function/Auto Power off

• Overloading safety up to 400%

• Power ON/OFF switch ; Energy-Saving Mode

• Low Power and Charging Status Indication

• 360° Freely Swiveling Hook; Easy to Operate

• Rugged and Reliable Aluminum Alloy construction



 Specifications

Model/Capacity

Model

Capacity

Division

VQW - 3T

3000kg

1kg

VQW - 5T

5000kg

2kg

VCW - 10T

10000kg

5kg

Display

         5 digits, 7-segment LED (30 mm - letters hight)

Keyboard

4 buttons

Weighing Units

Kg / lb

Stabilization

3 sec

Tare Range

100% of full-scale capacity

Calibration

External calibration

Operating Environment

Temperature : 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
AC: 110V or 220V ± 10%

Overall Dimensions

3 Ton  : 240 mm x 180 mm x 560 mm (WxDxH)

5 Ton  : 240 mm x 180 mm x 615 mm  (WxDxH)

10 Ton : 240 mm x 180 mm x 720 mm (WxDxH)
