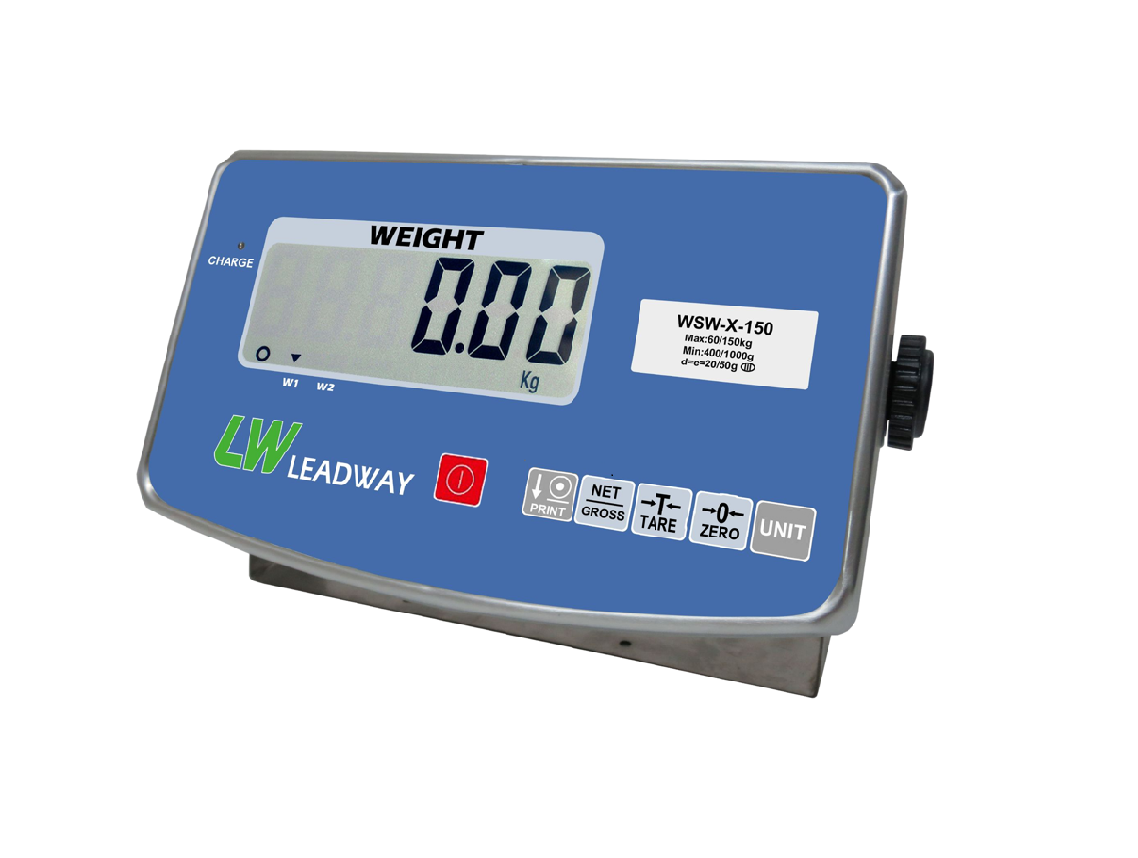

WSW-X Weighing Indicator

The brand new WSWX Series indicator with single division and up to IP 67 Water-proof structure. If you need a durable scale to apply in the water house, this will be your best choice.

This indicator has very nice housing with stainless steel 304 and housing thickness has 1 mm.

Optional Device:
• RS-232 or Relay Output Interface

Certificates
◆ T12308 EU-type examination certificate
◆ TC12301 Evaluation Certificate
◆ CE194 EU quality system approval


分享到

 Features

• Letters height - 30 mm on LCD Display
• Auto Zero-Point Tracking
• Tare Function
• Green Backlight on front LCD
• UNIT: kg/pcs
• Indicator Dimension 245*148*80mm
• Indicator housing - Stainless steel (304) housing for 1mm thickness
• Rechargeable battery 6V/4Ah enclosed
• Simple counting function
• Exchange key for NET/GROSS weight

 Specifications

Model/Capacity

Model

Capacity

Division

Division

WSWX-IN-60

60kg

20g

20g

WSWX-IN-150

 150kg

50g

50g

WSWX-IN-300

300kg

100g

100g

WSWX-IN-600

600kg

200g

200g

Display

6 digits, 30 mm LCD Display

Keyboard

5 keys

Calibration

External calibration

Stabilization

3 sec

Tare Range

100% of full scale capacity

Operating Environment

Temperature : 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

Overall Dimensions

Scale: 245mm x 148mm x 80mm (WxDxH)

Packing

Shipping Carton: 6units/CTN; 3.1CUFT
N.W.: 13.85kg / G.W.: 16.85kg


♦ Place of Origin: MADE IN CHINA

KINGSHIP WEIGHING MACHINE CORP.
