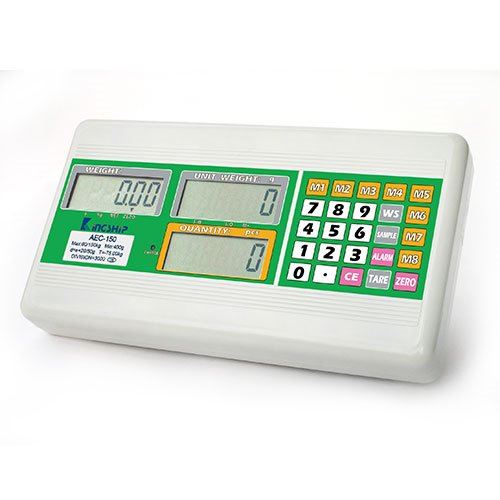

AEC Counting Indicator

The AEC counting indicator provides user high accuracy and perfect performance of weighing needs. This model is equipped with 8 pre-set memory keys for saving unit weight setting, besides stores up to 99 data accumulation and 45 data recall for the operator’s conveniently use. Preset count and weight limits can be set to alarm the operator that a requested quantity or desired weight has been achieved.

Optional Device
• RS-232 Interface
• Adjustable regulator

Certificates
• Evaluation Certificate(No.TC7633R7)
• EU-type examination certificate (No. TC7634R5 with Structure)
• EC-Type Approval

分享到

 Features

• 17.5mm Front-side LCD Display

• With Dual-Range Division

• M1~M8, 8 sets of direct memory keys

• Counting Operation by simple-quantity or unit weight

• Accumulation Function(up to 99 data accumulation)

• Quantity Alarm setting

• Weight Checking Function( Hi/ Low Limit setting)

• Energy-Saving Function

• Low Power and Charging Status Indication

 Specifications

Model/Capacity

Model

Capacity

Division

AEC-IN-60

60kg/30kg

20g/10g

AEC-IN-150

150kg/60kg

50g/20g

AEC-IN-300

300kg/150kg

100g/50g

AEC-IN-600

600kg/300kg

200g/100g

Display

6,6,6 digits LCD Display

Keyboard

25 keys tactile

Memory Keys

8 keys

Weighing Units

Kg / pcs

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

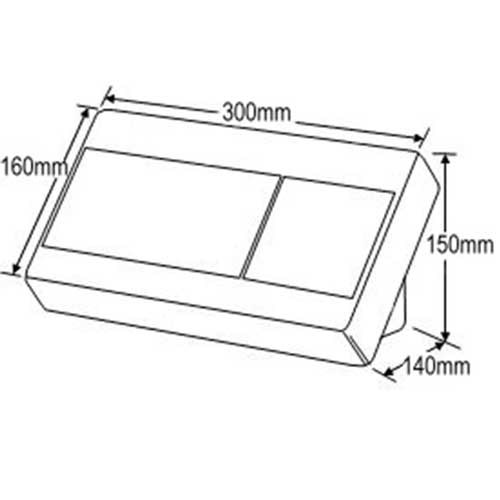

Overall Dimensions

300mm x 160mm x 150mm (WxDxH)

Packing

Shipping Carton: 6units/CTN; 4.9CUFT
N.W.: 15.40kg / G.W.: 20.66kg

• Non-approval model: 1/15000 display resolution (single-range or dual-range with 1/3000 per range available)

• Approval model: 1/3000 display resolution (single-range or dual-range available)



♦ Place of Origin: MADE IN TAIWAN
