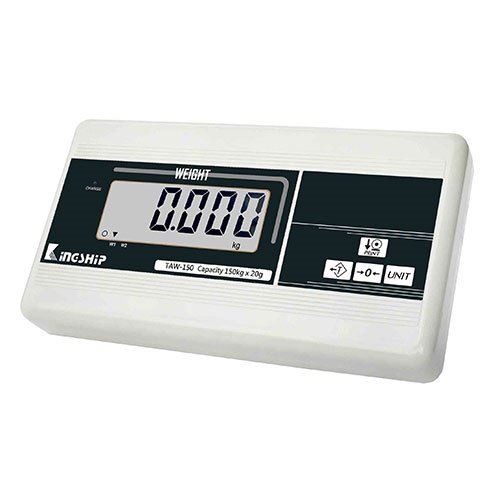

TAW Weighing Scale

For use in industries, factories, schools, offices, home use and a wide range of other various weighing applications, this model features a large wide and easy-to-read LCD display and accurate performance. Equipped with kg unit weighing and simple counting function, it makes the user operate much conveniently and easily.

Optional Device:
• Front side Display Backlight
• Adjustable Regulator
• RS-232 Interface

Compatible structure:

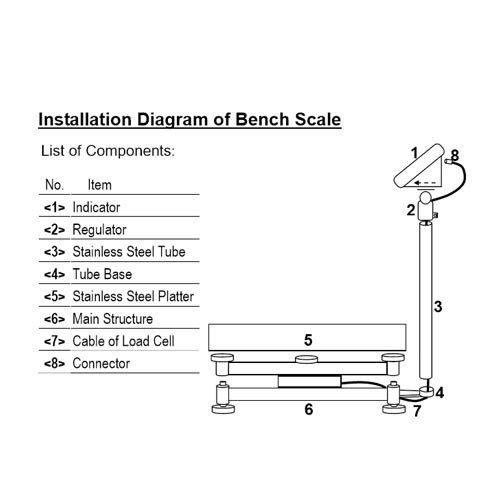

• Platform scale structure
• Floor scale structure

分享到



 Features

• 30mm Large LCD Display

• Simple Counting Function

• Auto Zero Point Tracking

• Weight Unit: kg/pcs available

• Energy-Saving Function

• Support Display Resolution up to 1/15000

• External Digital Calibration

• Low Power and Charging Status Indication

Options

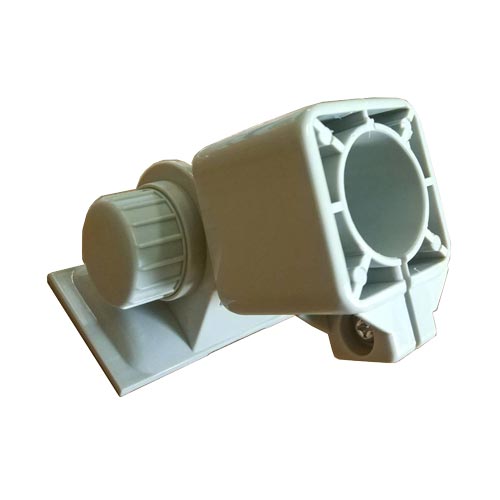

• Adjustable Holder

• RS-232 or Relay Output Interface



 Specifications

Model/Capacity

Model

Capacity

Division

S1-TAW-150

150kg

20g

S1-TAW-300

300kg

50g
Display 6 digits Large LCD Display

Weighing Units

 kg / pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

Overall Dimensions

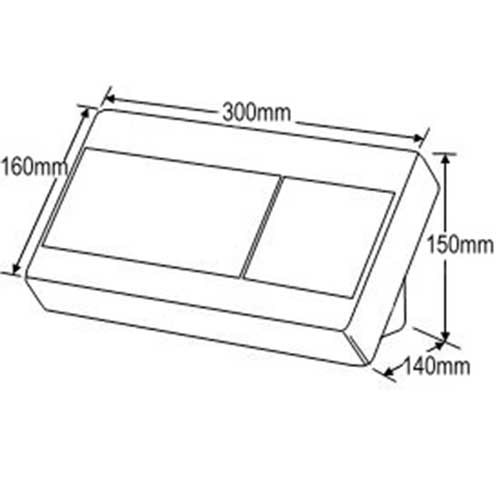

Scale: 300mm x 140mm x 160mm (WxDxH)

Packing

Shipping Carton: 6units/CTN;

4.9CUFT/N.W.: 18.65kg/G.W.: 21.50kg



KINGSHIP WEIGHING MACHINE CORP.
