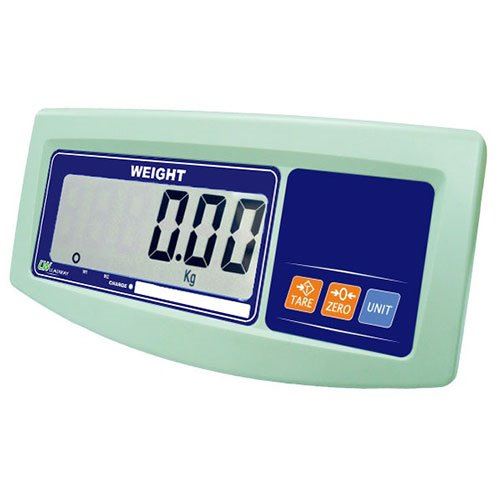

SEW Weighing Scale

This indicator weighing SEW-IN is designed for weight-checking applications that require fast and accurate interpretation. This model is provided with four different convenient functions adjusting units (kg / lb / oz / pcs), RS-232 interface, and transmission interface output for practical use. It has feature a wide front display with letters height for 46 mm and the optional rear monitor for the user to easily operate. It can be used in industries, factories and a wide variety of weighing operations, this indicator could meet your needs weighing weighing giving accurate interpretations.

Optional Device
• RS-232 Interface
• Adjustable regulator

Certificates
• Evaluation Certificate (No. TC7633R7)
• EU-type examination certificate (No. T7634R5)

分享到




 Features

• Letters height 46 mm with reading easily on LCD display
• Maximum capacity is flexible for adjustments from 30 kilograms to 100 tons
• Automatic return to zero
• More than 1/5000 monitor resolution (internal 1/130000)n
• Tare function
• Energy saving function
• Low battery and charge status indicator
• Simple counting function



Option

• LED Backlight
• Rear display
• RS-232 output interface
• Interface relay
• Adjustable Regulator



 Specifications

Model/Capacity

Model

Capacity

Division

SEW-IN-30

30kg

10g/5g/2g

SEW-IN-60

60kg

20g/10g/5g

SEW-IN-150

150kg

50g/20g/10g

SEW-IN-300

300kg

100g/50g/20g

SEW-IN-600

600kg

200g/100g/50g

Display

6 digits, LCD(33.5 mm / 1.32")

Keyboard

3 keys

Weighing Units

kg / lb / oz / pcs

Stabilization

3 sec

Tare Range

By subtraction up to 100% capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

Overall Dimensions

295mm x 140mm x 140mm (WxDxH)

Packing

Shipping Carton: 6units/CTN; 4.90CUFT
N.W.: 15.00kg / G.W.:20.00kg
