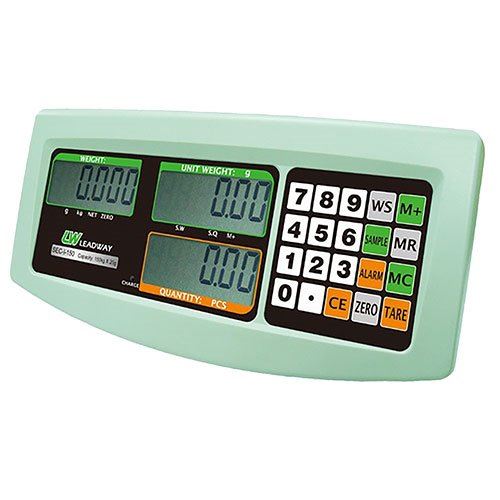

SEC Counting Indicator

With high performance and exact calculation function plus flexible calculation operations and easy to use design, this model stores up to 99 cumulative data and 45 data in memory for convenient operator use. The weight and quantity limits can be preselected to remind the operator that the desired quantity or weight has been reached. This model is appropriate and ideal for use in various environments.

Optional Device
• RS-232 Interface
• Adjustable regulator

Certificates
• Evaluation Certificate (No. TC7633R7)
• EU-type examination certificate
(No. TC7634R5 with Structure)
• EC-Type Approval

分享到



 Features

• More than 1/5000 monitor resolution (internal 1/130000)
• Maximum capacity is flexible for adjustments from 30 kilograms to 100 tons
• Automatic return to zero
• Tare function
• Energy saving function
• Low battery and charge status indicator
• Calculation operations to adjust Unit Weight or Sample Quantity
• Accumulation function (accumulation of up to 99 data and 45 in data memory)
• Amount alarm setting
• Weight check function (alarm for high / low limit)
• Water cover for when the balance is in use.


 Specifications

Model/Capacity

Model

Capacity

Division

SEC-IN-60

60kg

20g

SEC-IN-150

150kg

50g

SEC-IN-300

300kg

100g

SEC-IN-600

600kg

200g

Display

6,6,6 digits, LCD(18 mm / 0.7″)

Keyboard

20 keys

Weighing Units

kg(g) / pcs

Stabilization

3 sec

Tare Range

By subtraction up to 100% capacity

Calibration

External calibration

Operating Environment

Temperature : 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

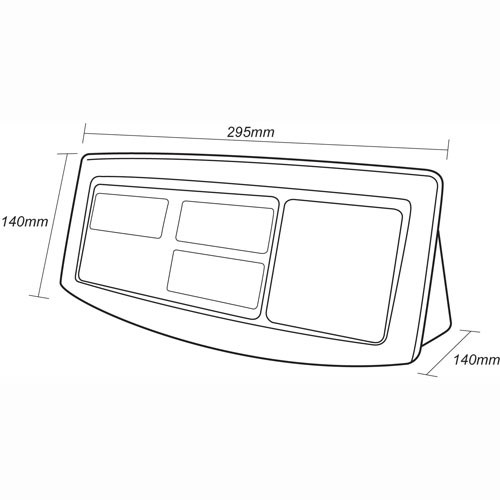

Overall Dimensions

295mm x 140mm x 140mm (WxDxH)

Packing

Shipping Carton: 6units/CTN; 3.10CUFT
N.W.: 13.80kg / G.W.:16.85kg

KINGSHIP WEIGHING MACHINE CORP.
