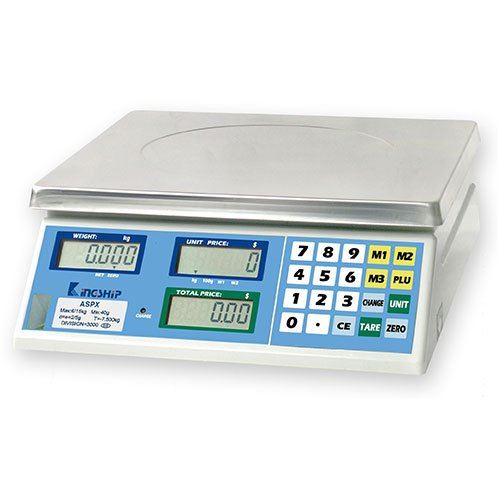

ASPX Price Computing Scale

An entry model of pricing scales with OIML approved certificate by European professional laboratory. The ASPX scale is the most popular sale in the EU countries with the number one sale. It has been with 100% testing before package to make sure it's with reliable weighing performance and is discharged/charged fully to confirm its good electronic power status.

An entry model of pricing scales with OIML approved certificate by European professional laboratory. The ASPX scale is the most popular sale in the EU countries with the number one sale. It has been with 100% testing before package to make sure it's with reliable weighing performance and is charged/discharged over 24 hours to confirm its good electronic power status.

The ASPX pricing scale is installed qualified components and each assembling step with strict monitor. Each scale has 5 points (4 corners & the central position) testing to have very stable and accurate weighing value.

This scale with OIML ideally suited for sale of foods and beverage in the markets and grocery stores; the standard scale is equipped with dual LCD display – one is for the operator and the other display is for the customer.
It has the plastic and stainless steel platter which it’s with the material 304 made.

To meet your requirement to connect the POS or cash register, your assigned protocal is acceptable with our scale, our engineers will edit the suitable program for you. The OEM or ODM project with customized logo or features on our scale are welcome to cooperate with our scale.

Optional Device:
• RS-232 Interface
• Rear LCD Display with Backlight

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval
◆ OIML Certificate R76/2006-a-NL1-21.44

分享到

 Features

• 14.5mm Dual-Side LCD dispaly (operator and customer side)
• With Single Interval Division
• 3 Pre-set Memory Keys (M1~M3) for saving unit price
• 90 sets of indirect PLU
• Give-Change Function & Tare Function
• Weight Unit Setting: kg / 100g available
• Auto Zero Point Tracking
• Gravity-Value Setting
• Anti-Cockroach Device
• Low Power and Charging Status Indication
• Stainless steel (304) and plastic platter included



 Specifications

Model/Capacity

Model

Capacity

Division

ASPX-15

15kg

5g

ASPX-30

30kg

10g

Display

6,6,6 digits LCD Display

Keyboard

20 keys

Preset Memory Keys

3 keys

Weighing Units

Kg / 100g

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

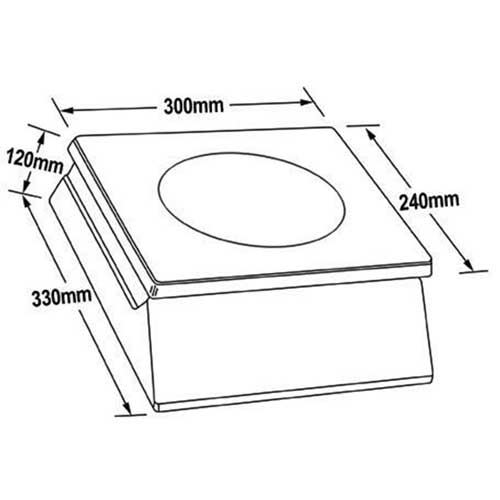

Overall Dimensions

Scale: 300 x 330 x 120  mm (WxDxH)
Platter: 300 x 240  mm (WxD)

Packing

Shipping Carton: 3units/CTN; 3.3CUFT
N.W.: 14.00kg / G.W.: 18.10kg

Note for Approved Model

• Approval model: 1/3000 display resolution (single-range or dual-range available)
• Kilogram (kg) / 100 gram (100g) weighing modes
• 3 Pre-set Memory Keys (M1~M3) for saving unit price OR Accumulation Functions (M+ / MC), up to 99 data accumulation while being connected with an label printer

Other note for Non-approved Model

• Non-approval model: 1/6000 display resolution (single-range or dual-range with 1/3000 per range available)
• Kilogram (kg) / 100 gram (100g) / pound (lb) / ounce (oz) weighing modes
• Accumulation Functions (M+ / MR / MC), up to 99 data accumulation and 45 data recall

♦  Place of Origin: MADE IN TAIWAN

KINGSHIP WEIGHING MACHINE CORP.
