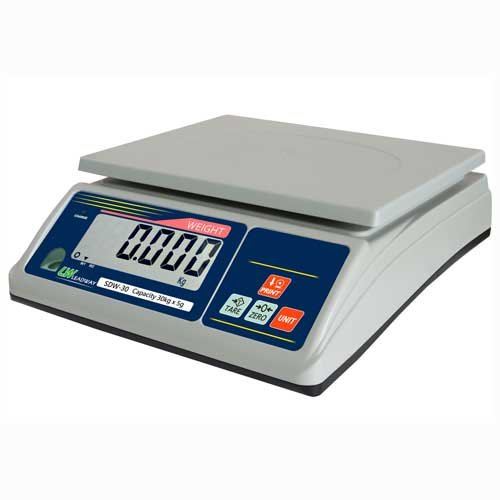

SDW Weighing Scale

A high-quality model for industrial and commercial applications, the SDW weighing scale is perfect for basic weighing functions and support display resolution up to 1/15000. Easy and simple operation with precise performance weighing function. Equipped with kg/pcs and simple counting function, it makes the user operate much conveniently and easily.

Optional Device
• Stainless Steel Platter
• RS-232 Interface

Family Products
• SDW Indicator
• SDW Platform Scales

分享到



 Features

  • 30mm Large LCD display
  • Support Display Resolution up to 1/15000
  • Simple Counting Function
  • Weight Unit Setting: kg / pcs available
  • Energy-Saving Function
  • Auto Zero-Point Tracking
  • Gravity-Value Setting
  • External Digital-Calibration
  • Low power and Charging status Indication

 Specifications

Model/Capacity

Model

Capacity

Division

SDW-15

15kg

2g

SDW-30

30kg

5g

Display

30mm LCD Display

Keyboard

4 keys

Weighing Units

kg / pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery

   (160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

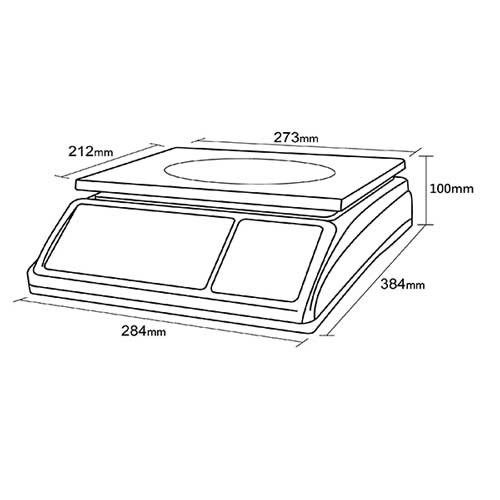

Overall Dimensions

Scale: 284mm x 384mm x 100mm (WxDxH)
Platter: 273mm x 212mm (WxD)

Packing

Shipping Carton: 3units/CTN;  3.1CUFT
N.W.: 13.80kg/G.W.: 16.85kg
