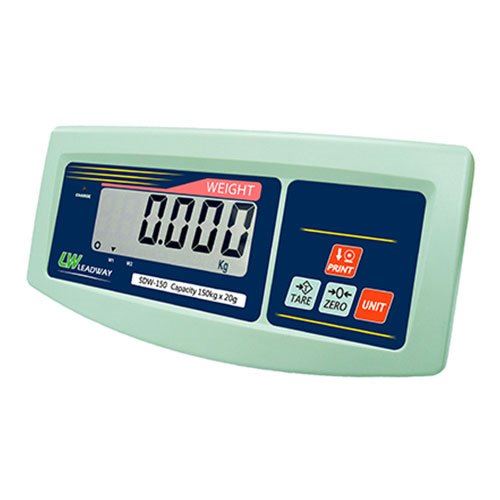

SDW Weighing Scale

An economical model for industrial and commercial applications, the SDW weighing scale is perfect for basic weighing functions and support display resolution up to 1/15000. Easy and simple operation with precise performance weighing function, it makes the user operate much conveniently and easily.

Optional Device:

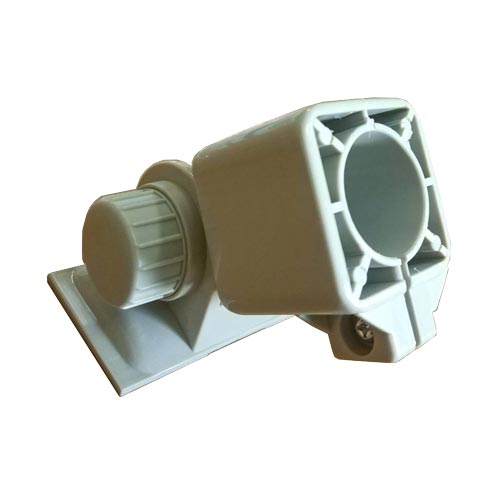

• Adjustable Regulator
• RS-232 Interface

Compatible structure:

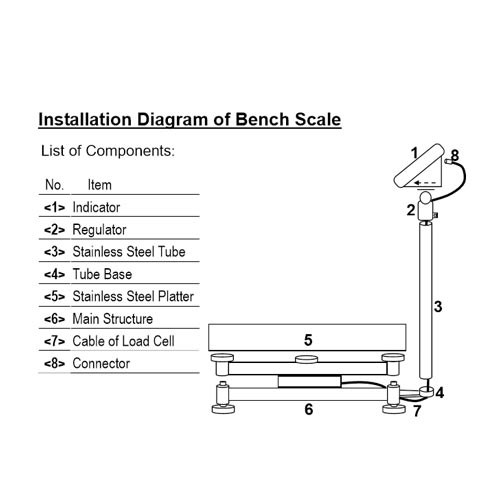

• Platform scale structure
• Floor scale structure

分享到

 Features

• 30mm Large LCD display

• Support Display Resolution up to 1/15000

• Simple Counting Function

• Weight Unit Setting: kg / pcs available

• Energy-Saving Function

• Auto Zero-Point Tracking

• External Digital-Calibration

• Low power and Charging status Indication



 Specifications

Model/Capacity

Model

Capacity

Division

B1-SDW-150

150kg

20g

B1-SDW-300

 300kg

50g

Display

6 digits LCD 30mm

Keyboard

4 keys

Weighing Units

kg / pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
     (160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

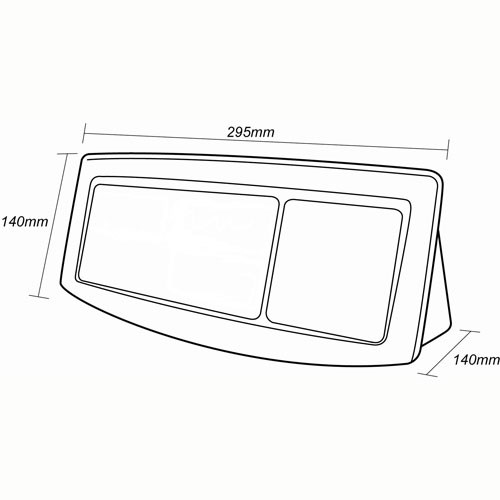

Overall Dimensions

Scale: 295mm x 140mm x 140mm (WxDxH)

Packing

Shipping Carton: 6 units/CTN; 3.1CUFT
N.W.: 13.80kg / G.W.: 16.85kg



♦ Place of Origin: MADE IN CHINA

KINGSHIP WEIGHING MACHINE CORP.
