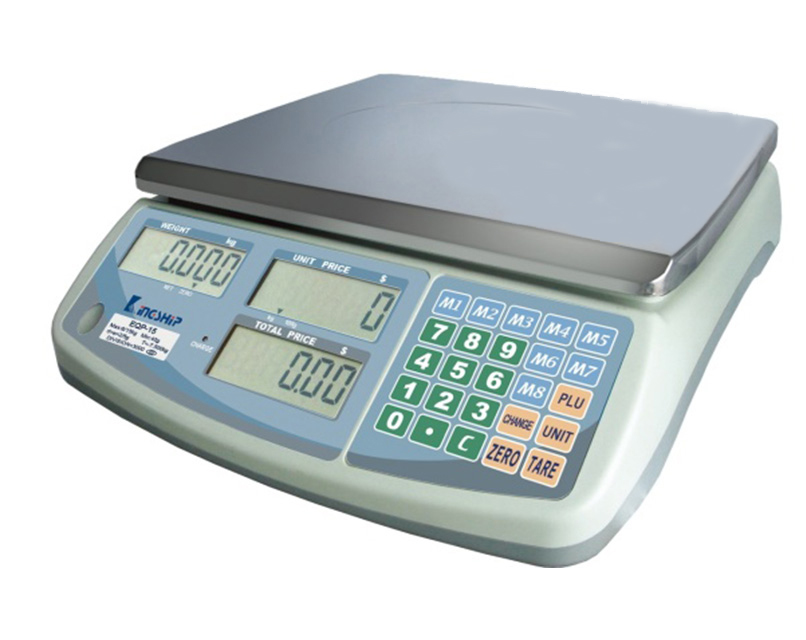

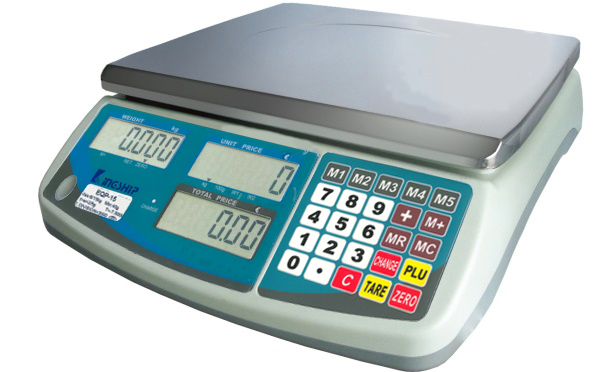

EQP / EQPL Price Computing Scale

The EQP / EQPL Series is a high quality retail scale with elegant and streamlined appearance. This pricing scale equipped with easy-to-read large LCD display, and the rugged frame make it perfect for any counter. With adjustable, nonskid feet and bubble level, the EQP / EQPL pricing scale could perform well with steady weighing.

Optional Device:

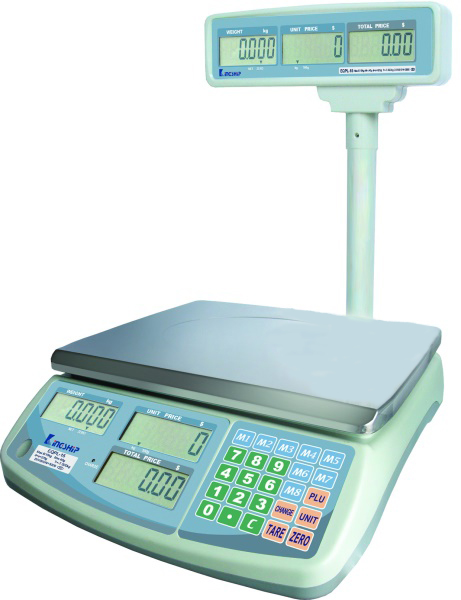

• Pole Display for EQPL
• RS-232 output Interface

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval

分享到

 Features

  • 21mm Dual-Side LCD Display (customer side and vendor side)
  • M1~M8, 8 sets of direct memory keys
  • 90 sets of indirect PLU
  • Tare and Give-Change Function
  • Weight Unit: kg/ 100g available
  • Auto Zero Point Tracking
  • Anti-Cockroach Device
  • Low power & Charging status Indication
  • Stainless Steel Platter

 Specifications

  • MODEL

    Capacity

    Division
    (Dual range)

    Division
    (Single range)

    EQP/EQPL-6

    6kg

    1g/2g

    2g

    EQP/EQPL -15

    15kg

    2g/5g

    5g

    EQP/EQPL -30

    30kg

    5g/10g

    10g

    EQP/EQPL -60

    60kg

    10/20g

    20g

    EQP/EQPL -105

    105kg

    20/50g

    50g

    Display

    6 digits Large LCD Display

    Keyboard

    25 keys tactile

    Weighing Units

    Kg / 100g

    Stabilization

    3 sec

    Tare Range

    50% of full scale capacity

    Calibration

    External calibration

    Operating Environment

    Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
    Humidity: < 80%

    Power Source

    DC: 4Ah/6V Rechargeable Battery
    (160 hours without Backlight)
    AC: 110V or 220V ± 10%, 60Hz/50Hz

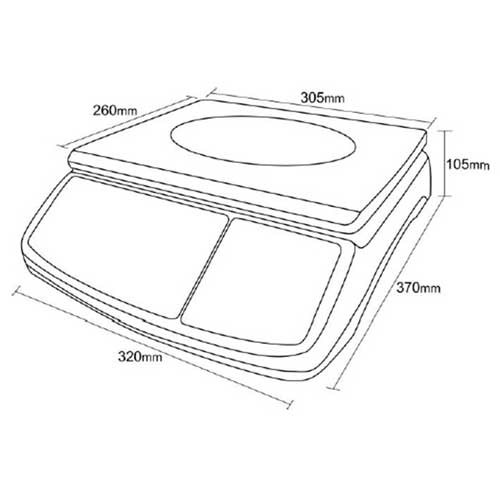

    Overall Dimensions

    Scale: 320mm x 370mm x 105mm (WxDxH)
    Platter: 305mm x 260mm (WxD)

    Packing

    Packing of EQP:
    Shipping Carton: 3units/CTN; 4.3CUFT
    N.W.: 14.60kg / G.W.: 18.9

    Packing of EQPL:
    Shipping Carton: 3units/CTN;  5.4CUFT
    N.W.: 17.80kg / G.W.: 22.35kg

  • Approved Model
    - Kilogram (kg) / 100 gram (100g) weighing modes
    - 8 Pre-set Memory Keys (M1~M8) for saving unit price OR Accumulation Functions (M+ / MR / MC)
    - up to 99 data accumulation and 18 data recall while being connected with an label printer and 4 Pre-set Memory Keys (M1~M4)

  • Non-approved Model
    - Kilogram (kg) / 100 gram (100g) / pound (lb) / ounce (oz) weighing modes
    - 4 Pre-set Memory Keys (M1~M4) for saving unit price
    - Accumulation Functions (M+ / MR / MC), up to 99 data accumulation and 45 data recall

♦ Place of Origin: MADE IN TAIWAN

KINGSHIP WEIGHING MACHINE CORP.
