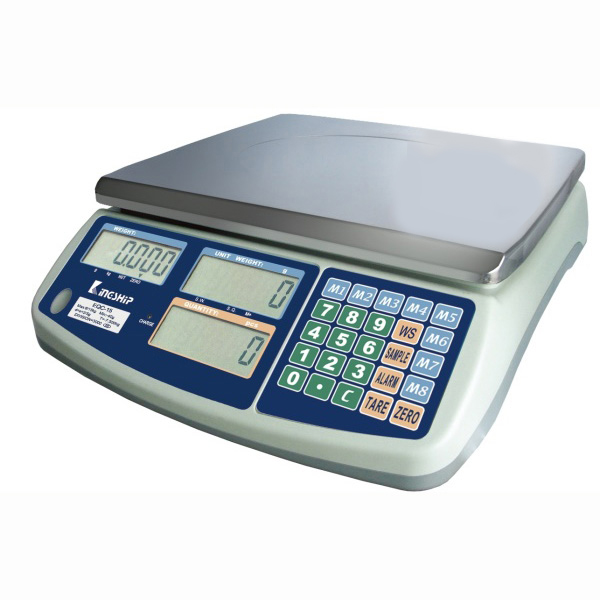

EQC Counting Scale

With a streamlined appearance and sleek profile, the EQC counting scale provides the user with high quality and perfect performance. This digital counting scale equipped with easy-to-read large LCD display and easy-to-operate user interface, it could perform very well with steady weighing results under any kind of industrial application.

Optional Device:
• RS-232 or Relay output Interface

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval

分享到

 Features

  • 21mm LCD Display
  • With Single-Interval or Multi-Range Division
  • Auto Zero-Point Tracking
  • Tare Function
  • Counting Operation by Sample-quantity or Unit Weight Setting
  • up to 99 data accumulation and 18 data recall(need to be equipped with outer Label Printer for approved model)
  • Quantity Alarm Setting
  • Weight Checking Function (High / Low Limit Setting)
  • Energy-Saving Function
  • Low Power & Charging Status Indication
  • External Digital-Calibration
  • Gravity-Value Setting
  • Stainless Steel Platter

 Specifications

MODEL

Capacity

Division
(Dual range)

Division
(Single range)

EQC-6

6kg

1g/2g

2g

EQC-15

15kg

2g/5g

5g

EQC-30

30kg

5g/10g

10g

EQC-60

60kg

10/20g

20g

EQC-105

105kg

20/50g

50g

Display

6 digits Large LCD Display

Keyboard

25 keys tactile

Weighing Units

Kg / pcs

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

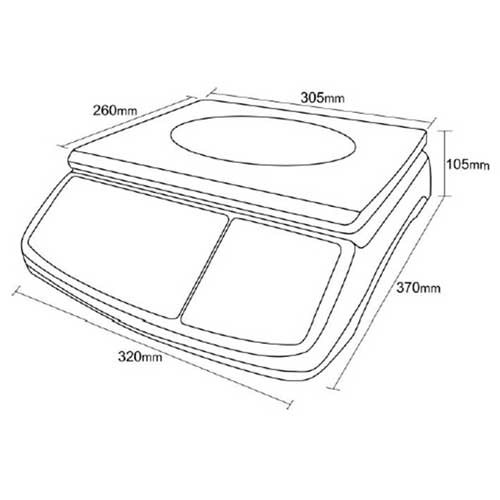

Overall Dimensions

Scale: 320mm x 370mm x 105mm (WxDxH)
Platter: 305mm x 260mm (WxD)

Packing

Shipping Carton: 3units/CTN; 4.3CUFT
N.W.: 14.60kg / G.W.: 18.9kg


♦ Place of Origin: MADE IN TAIWAN

KINGSHIP WEIGHING MACHINE CORP.
