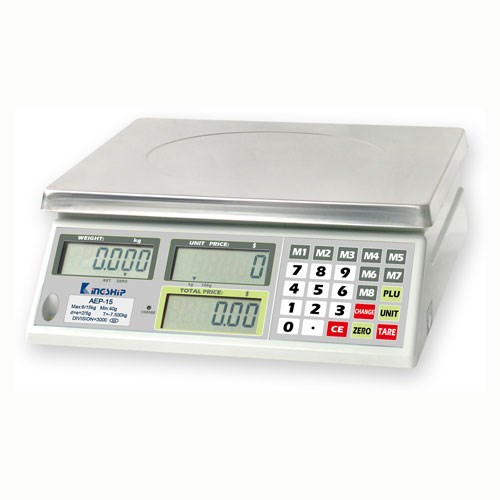

AEP / AEPL Price Computing Scale

With letters height for 17.5 mm and dual-side LCD Display (customer and operator side), the AEP / AEPL series are offered with affordable price & reliable weighing performance. It's available to provide the division of single interval, multiple range and multiple interval. This durable scale is also included a splash-proof cover and overload protection.

Optional Device:
• RS-232 Interface
• Rear Display Backlight

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval
◆ OIML Certificate R76/2006-a-NL1-21.44

分享到

 Features

  • Letters height 17.5 mm with dual-side LCD Display (customer and operator side)
  • With Single-interval or Multiple range Division
  • Auto Zero-Point Tracking and Tare Function
  • Give-Change Function
  • Weight Unit Setting: kg / 100g available
  • 8 Pre-set Memory Keys (M1~M8) for saving unit price
  • P10 ~ P99, 90 sets of indirect PLU
  • Low Power & Charging Status Indication
  • External Digital-Calibration
  • Gravity-Value Setting
  • Adjustable and Nonskid Rubber Feet
  • In-use Cover for Water-Splash Proof
  • Stainless Steel (304) & Plastic Platter

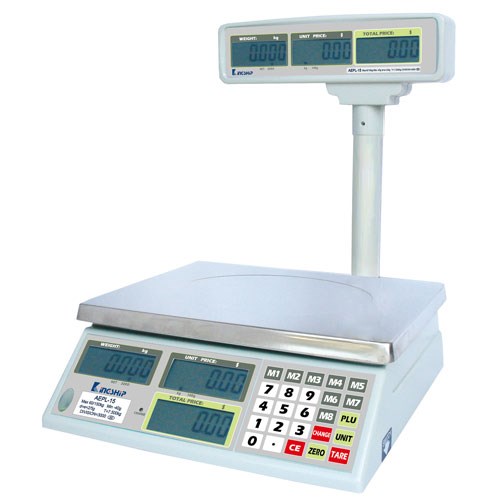

  • Optional Pole Display for AEPL Model

 Specifications

  • MODEL

    Capacity

    Division
    (Multiple range)

    Division
    (Single interval)

    AEP/AEPL-6

    6kg

    1g/2g

    2g

    AEP/AEPL -15

    15kg

    2g/5g

    5g

    AEP/AEPL-30

    30kg

    5g/10g

    10g

    Display

    6,6,6 digits for 3 LCD windows isplay

    Keyboard

    25 keys tactile

    Weighing Units

    Kg / 100g

    Stabilization

    3 sec

    Tare Range

    50% of full scale capacity

    Calibration

    External calibration

    Operating Environment

    Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
    Humidity: < 80%

    Power Source

    DC: 4Ah/6V Rechargeable Battery (160 hours without Backlight)
    AC: 110V or 220V ± 10%, 60Hz/50Hz

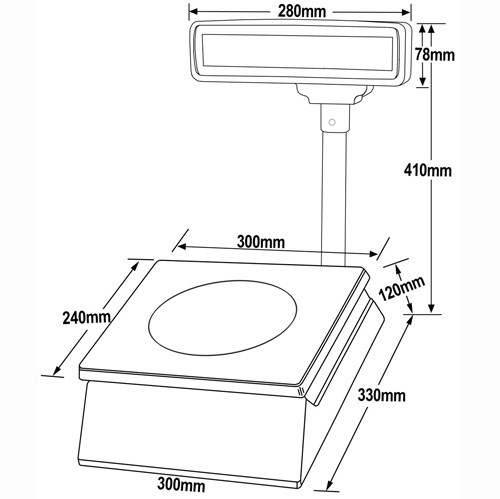

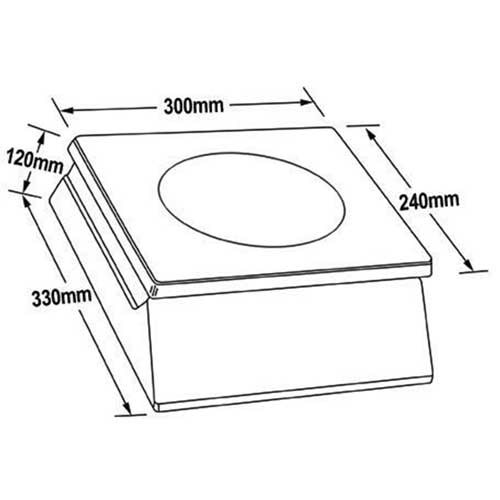

    Overall Dimensions

    Scale: 300mm x 330mm x 120mm (WxDxH)
    Platter: 300mm x 240mm (WxD)

    Packing

    Packing of AEP:
    Shipping Carton: 3 units/CTN; 3.3CUFT
    N.W.: 14Kg / G.W.: 18.1Kg

    Packing of AEPL:
    Shipping Carton: 3 units/CTN; 4.4CUFT
    N.W.: 17.20Kg / G.W.: 21.50Kg
  • Non-approval model: 1/6000 display resolution (single-interval or multiple range)
  • OIML Approval model: 1/3000 display resolution (single-interval or multiple range)


♦  Place of Origin: MADE IN TAIWAN
