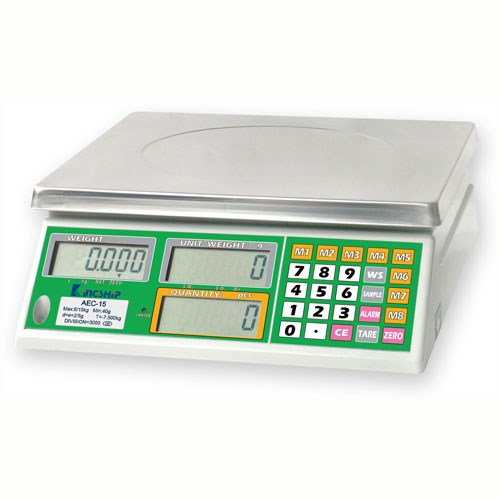

AEC Counting Digital Scale

The AEC counting scale provides user high accuracy and perfect performance of weighing needs. The preset count and weight limits function can be set to alarm the operator that a requested quantity or desired weight has been achieved.

Optional Device:
• Backlight
• RS-232 or Relay output Interface

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval
◆ OIML Certificate R76/2006-a-NL1-21.44

分享到

 Features

  • 17.5mm Front-side LCD Display
  • Single interval or Multiple Range Division available
  • M1~M8, 8 sets of direct memory keys to save the Unit Weight
  • Counting Operation by simple-quantity or unit weight
  • Quantity Alarm setting
  • Weight Checking Function( Hi/ Low Limit setting)
  • Energy-Saving Function
  • Anti-Cockroach Device
  • Adjustable and Nonskid Rubber Feet
  • Low Power and Charging Status Indication
  • Stainless Steel & Plastic Platter included

 Specifications

MODEL

Capacity

Division
(Multiple range)

Division
(Single interval)

AEC-6

6kg

1g/2g

2g

AEC-15

15kg

2g/5g

5g

AEC-30

30kg

5g/10g

10g

Display

6,6,6 digits, LCD Display

Keyboard

25 keys tactile

Weighing Units

Kg / pcs

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery (160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

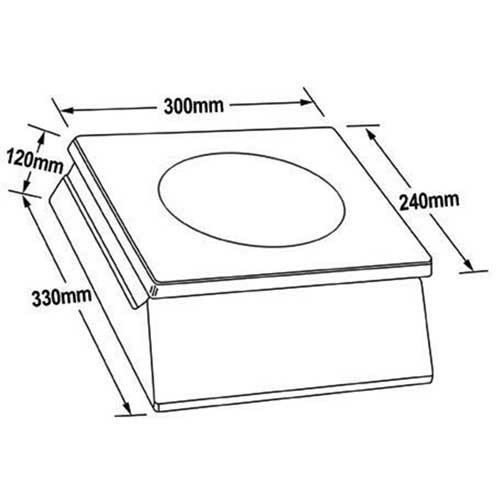

Overall Dimensions

Scale: 300mm x 330mm x 120mm (WxDxH)
Platter: 300mm x 240mm (WxD)

Packing

Shipping Carton: 3 units/CTN; 3.3CUFT
N.W.: 14Kg / G.W.: 18.1Kg
  • Non-approval model: 1/15000 display resolution (single-range or dual-range with 1/3000 per range available)
  • Approval model: 1/3000 display resolution (single-range or dual-range available)

♦  Place of Origin: MADE IN TAIWAN

KINGSHIP WEIGHING MACHINE CORP.
