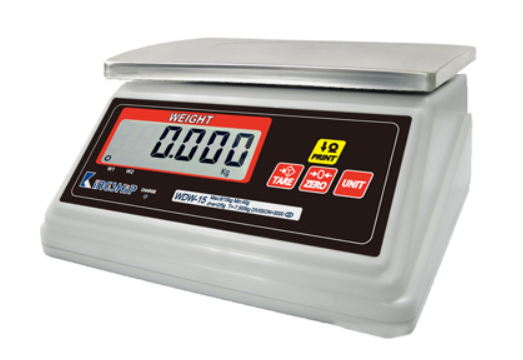

WDW Digital Weighing Waterproof Scale

The brand new WDW Digital Weighing Scale is a graceful weighing scale with multiple range division and waterproof structure. This steady WDW scales also reserved an optional RS232 interface to connect with printer device . If you need a durable scale that can stand up to the water house, this WDW scale will be your best choice.

Optional Device:
• RS-232 Interface

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval
◆ OIML Certificate R76/2006-a-NL1-21.44

分享到

 Features

  • IP-65 Waterproof design
  • 30 mm Large LCD Display
  • Weight Unit Setting: kg / pcs available
  • With Single-interval Division
  • Auto Zero-Point Tracking
  • Tare Function
  • Simple Counting Function
  • Low Power & Charging Status Indication
  • External Digital-Calibration
  • Could be connected with external printers via optional RS-232 interface: Argox (OS-203DT series) / Datecs (LP-50 series) / SPRT (SP-POS58 series)

 Specifications

Model/Capacity

Model

Capacity

Division

WDW-6

6kg

2g

WDW-15

15kg

5g

WDW-30

30kg

10g

Display

6 digits, 30 mm Large LCD Display

Keyboard

4 keys tactile

Preset Memory Keys

None

Weighing Units

Kg / pcs

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

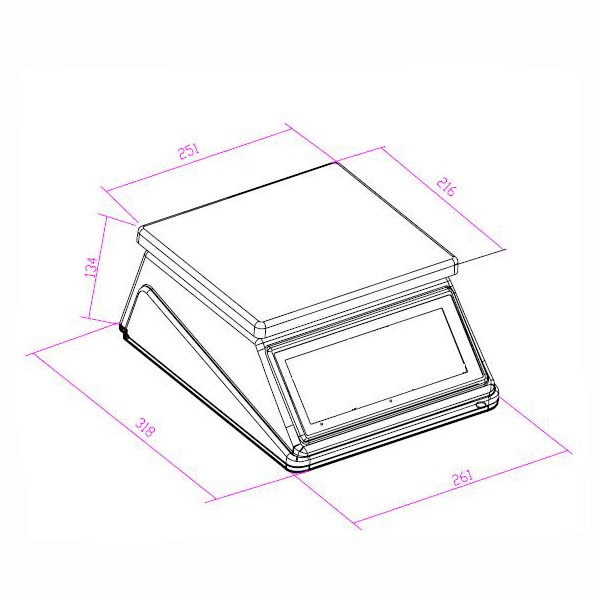

Overall Dimensions

Scale: 261mm x 317mm x 154mm (WxDxH)
Platter: 216mm x 251mm (WxD)

Packing

Shipping Carton: 3units/CTN; 3.3CUFT
N.W.: 14.00kg / G.W.: 18.10kg

KINGSHIP WEIGHING MACHINE CORP.
