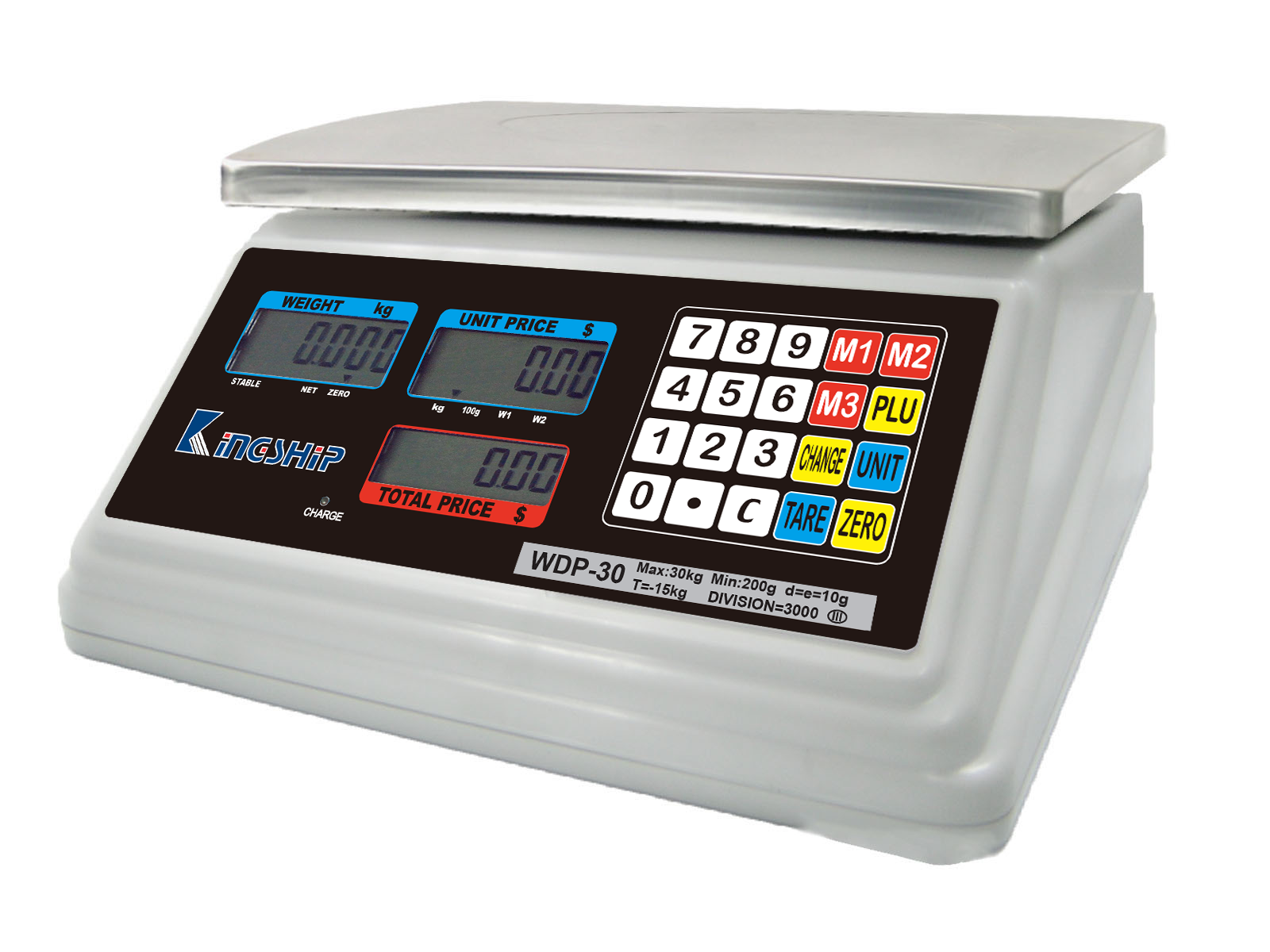

WDP Price Waterproof Computing Scale

The WDP Series is an ideal price computing scale with waterproof structure (IP65 class). If you need a durable scale to apply in the water house, the WDP is a the best choice to meet your requirement.

Optional Device:
• RS-232 Interface

Certificate:
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate

分享到

 Features

  • IP-65 Waterproof design
  • 17.5 LCD Display (customer sides)
  • Weight Unit Setting: kg / 100g available
  • With Single-interval or Multiple range Division
  • Auto Zero-Point Tracking
  • Tare Function
  • Give-Change Function
  • Environmental Filter Setting for better performance
  • 3 Pre-set Memory Keys (M1~M3) for saving unit price
  • P00 ~ P99, 100 sets of indirect PLU
  • Low Power & Charging Status Indication
  • External Digital-Calibration
  • Adjustable and Nonskid Rubber Feet
  • Could be connected with external printers via optional RS-232 interface: Argox (OS-203DT series) / Datecs (LP-50 series) / SPRT (SP-POS58 series)

 Specifications

  • MODEL

    Capacity

    Division  (Single range)

    WDP-6

    6kg

    2g

    WDP-15

    15kg

    5g

    WDP-30

    30kg

    10g

    Display

    5,5,6 digits, 17.5/17.5/19 mm LCD Display

    Keyboard

    20 keys tactile

    Weighing Units

    Kg / pcs

    Stabilization

    3 sec

    Tare Range

    50% of full scale capacity

    Calibration

    External calibration

    Operating Environment

    Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
    Humidity: < 80%

    Power Source

    DC: 4Ah/6V Rechargeable Battery
    (160 hours without Backlight)
    AC: 110V or 220V ± 10%, 60Hz/50Hz

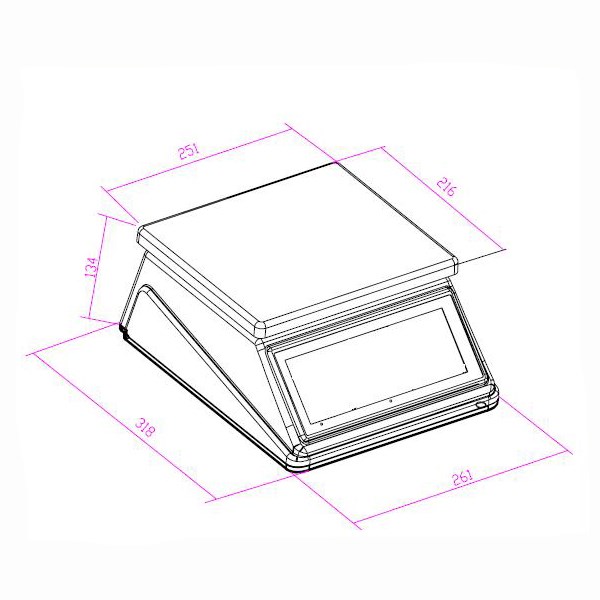

    Overall Dimensions

    Scale: 258 x 317 x 132 mm (WxDxH)
    Platter: 215 x 250 mm (WxD)

    Packing

    Shipping Carton: 6units/CTN; 3.18CUFT
    N.W.: 11.90kg / G.W.: 14.7kg

  • Non-approval model: 1/6000 display resolution (single-interval or multiple range with 1/3000 per range available)
  • Approval model: 1/3000 display resolution (single-interval or multiple range available

♦ Place of Origin: MADE IN CHINA
