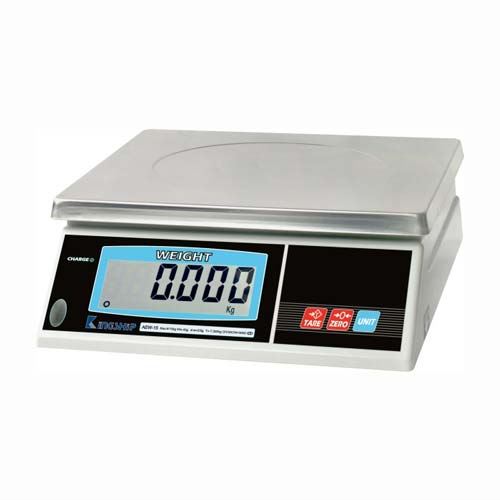

ASW Electrical Weighing Scale

ASW series are perfectly used in factories, schools, offices, home and a wide range of other various weighing applications. It features a large wide and easy-to-read LCD display and accurate performance. Equipped with simple counting function, it makes the user operate much more easily.

Optional device:
• Backlight
• RS-232 or Relay output Interface

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate
◆ CE194 EU quality system approval
◆ OIML Certificate R76/2006-a-NL1-21.44

分享到

 Features

  • 30 mm letters height with LCD display and read easily
  • Single interval or multiple range available
  • Auto zero point tracking
  • Tare function
  • Weight unit: kg/pcs available
  • Simple counting function
  • Weight checking function (Hi/Low Limit setting)
  • Energy-saving function
  • Low power & charging status indication
  • Stainless Steel & Plastic Platter included

 Specifications

Model/Capacity

Model

Capacity

Division

ASW-3

3kg

1g

ASW-6

6kg

1g/2g

ASW-15

15kg

2g/5g

ASW-30

30kg

5g/10g

Display

6 digits LCD 30mm

Keyboard

3 keys

Weighing Units

kg/pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10°C ~ 40°C (14°F ~ 104°F)
Humidity: <80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without backlight)
AC: 110V or 220V ± 10%, 50/60Hz

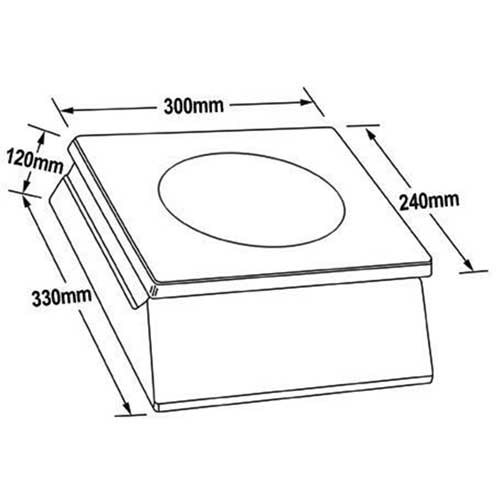

Overall Dimensions

Scale: 300 x 330 x 120 mm (WxDxH)
Platter: 300 x 240 mm (WxD)

Packing

Shipping Carton: 3 units/CTN; 3.3CUFT
N.W.: 14.00kg / G.W.: 18.10kg


♦ Place of Origin: MADE IN TAIWAN
