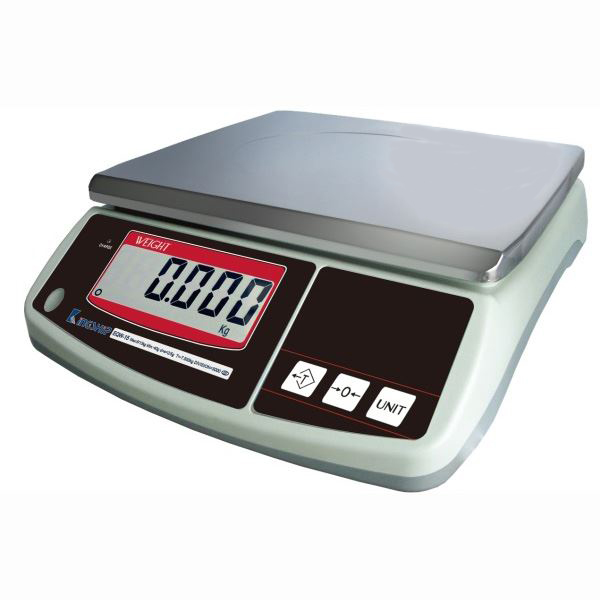

EQW Weighing Scale

EQW series are perfect for using in factories, schools, offices, home use and a wide range of other various weighing applications. It features a super large and easy-to-read LCD display. Equipped with kg weighing unit and simple counting function, the EQW makes the user operate much more conveniently. This model can be provided with the max. capacity for 65 or 105 kgs.

Optional device:
• RS-232 or Relay output Interface
• Max. capacity 60 or 105 kgs available

Certificates
◆ T12295 EU-type examination certificate
◆ R76-2006-A-NL1-21.44 OIML Certificate

分享到

 Features

  • 41mm large LCD display. Easy to read.
  • With dual-range division
  • Auto zero point tracking
  • Tare function
  • Weight unit: kg/pcs available
  • Simple counting function
  • Weight checking function (Hi/Low Limit setting)
  • Energy-saving function
  • Low power & charging status indication
  • Stainless Steel Platter

 Specifications

Model/Capacity

Model

Capacity

Division

EQW-6

6kg

1g/2g

EQW-15

15kg

2g/5g

EQW-30

30kg

5g/10g

EQW-60

60kg

10g/20g

EQW-105

105kg

20g/50g

Display

6 digits LCD 41mm

Keyboard

3 keys

Weighing Units

kg/pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10°C ~ 40°C (14°F ~ 104°F)
Humidity: <80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without backlight)
AC: 110V or 220V ± 10%, 50/60Hz

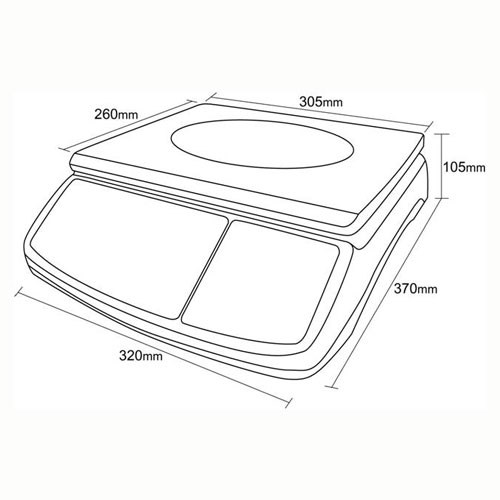

Overall Dimensions

Scale: 320 x 370 x 105 mm (WxDxH)
Platter: 305 x 260 mm (WxD)

Packing

Shipping Carton: 3 units/CTN; 4.3CUFT
N.W.: 14.60kg / G.W.: 18.95kg


♦ Place of Origin: MADE IN TAIWAN

KINGSHIP WEIGHING MACHINE CORP.
