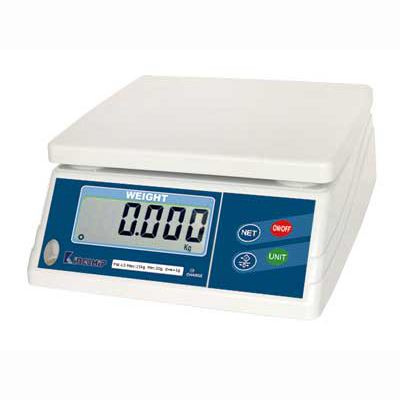

FW Weighing Scale

FW series are well suitable for using in factories, schools, offices, home use and a wide range of other various weighing applications. It features accurate performance and function of energy-saving. Besides, with 27mm LCD display, it's easy to be read. Equipped with kg/pcs unit weighing and simple counting function, it makes the user operate much more conveniently and easily.

Optional device:
• Front display backlight
• RS-232 or Relay output Interface

分享到

 Features

  • 27mm large LCD display
  • Support display resolution up to 1/7500
  • Auto zero point tracking
  • Tare function
  • Weight unit: kg/pcs available
  • Simple counting function
  • Energy-saving function
  • Charging status indication

 Specifications

Model/Capacity

Model

Capacity

Division

FW-15

15kg

2g

FW-30

30kg

5g

Display

6 digits LCD 27mm

Keyboard

4 keys

Weighing Units

kg/pcs

Stabilization

3 sec

Tare Range

100% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10°C ~ 40°C (14°F ~ 104°F)
Humidity: <80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(500 hours without backlight)
AC: 110V or 220V ± 10%

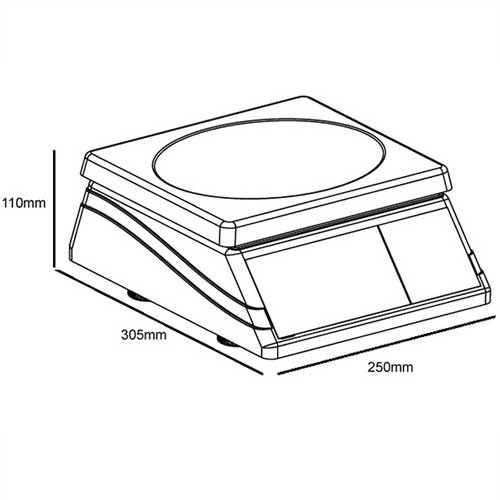

Overall Dimensions

Scale: 250 x 305 x 110 mm (WxDxH)
Platter: 250 x 225 mm (WxD)

Packing

Shipping Carton: 3 units/CTN; 3.3CUFT
N.W.: 14.00kg / G.W.: 18.10kg


♦ Place of Origin: MADE IN TAIWAN

KINGSHIP WEIGHING MACHINE CORP.
