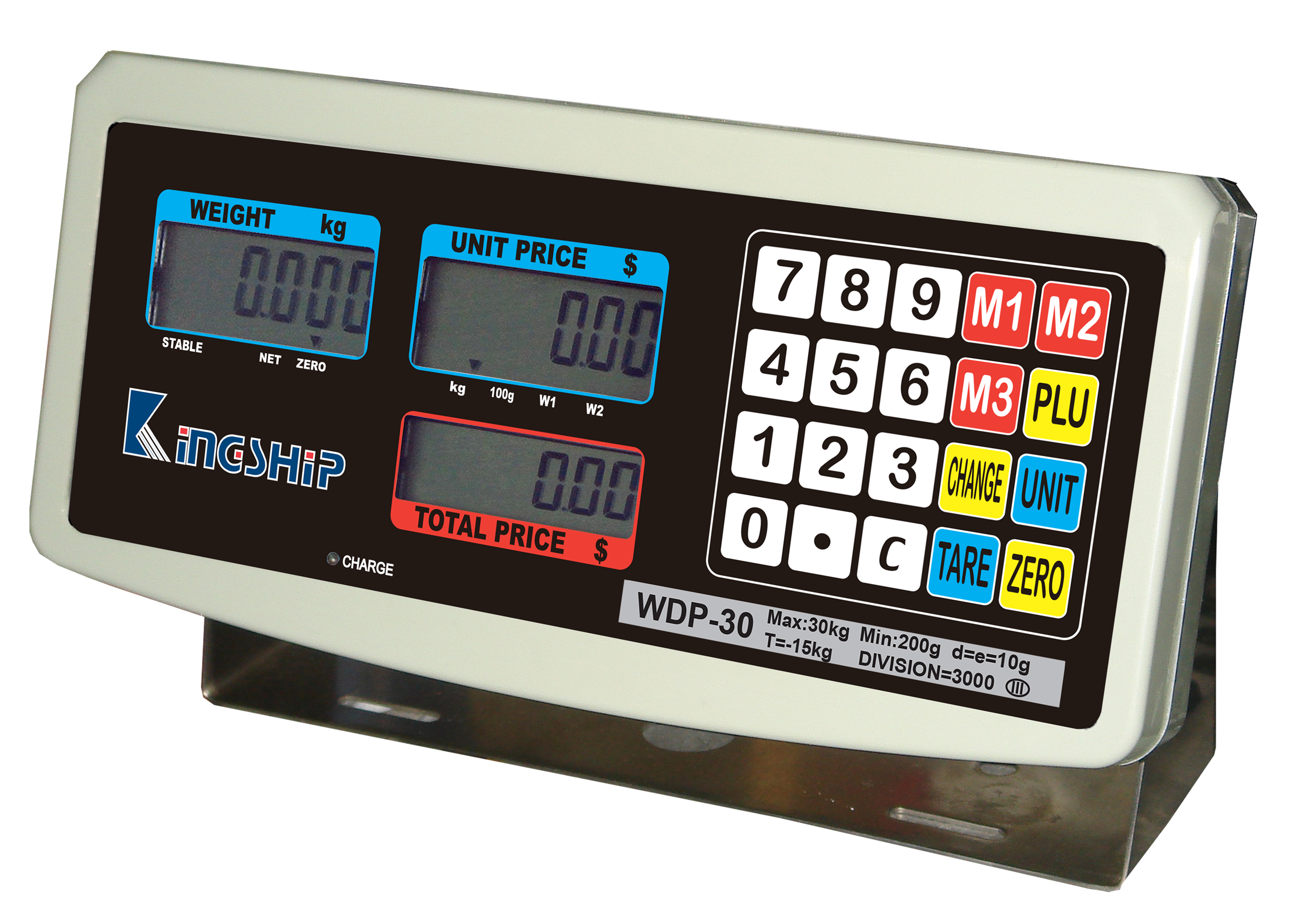

WDP Price Electronic Indicator

The brand new WDP Pricing Indicator is a graceful commercial indicator with multiple range division and waterproof structure. This steady WDP also reserved an optional RS232 interface to connect with external printer. If you need a durable digital indicator that will be built in the water house, this WDP indicator is your best choice.

Certificates
◆ T12308 EU-type examination certificate
◆ TC12303 Evaluation Certificate
◆ CE194 EU quality system approval


Compatible structure:
• Platform scale structure
• Floor scale structure

分享到

 Features

♦ IP- 65 Waterproof design
♦ 17.5/19 mm Dual-side LCD Display (Optional devise - customer display)
♦ Weight Unit Setting: kg / 100g available
♦ With Single-interval or Multiple range Division
♦ Auto Zero-Point Tracking
♦ Tare Function
♦ Give-Change Function
♦ Environmental Filter Setting for better performance
♦ 3 Pre-set Memory Keys (M1~M3) for saving unit price
♦ P00 ~ P99, 100 sets of indirect PLU
♦ Low Power & Charging Status Indication
♦ Available to connecte with external printers via optional RS-232 interface: Argox (OS-203DT series) / Datecs (LP-50 series) / SPRT (SP-POS58 series)

 Specifications

♦  Non-approval model: 1/6000 display resolution (single-interval or multiple range with 1/3000 per range available)
♦  Approval model: 1/3000 display resolution (single-interval or multiple range available)
    (The capacity and division shown as below is based on multiple range)
♦ The capacity and devision shown as below are based on Multi-range.

MODEL

Capacity

Division I

Division II

Division III

WDP-IN-60

60kg

20g

10g

5g

WDP-IN-150

150kg

50g

20g

10g

WDP-IN-300

300kg

100g

50g

20g

WDP-IN-600

600kg

200g

100g

50g

Display

6 digits Large LCD Display

Keyboard

20 keys tactile

Weighing Units

Kg / 100g

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

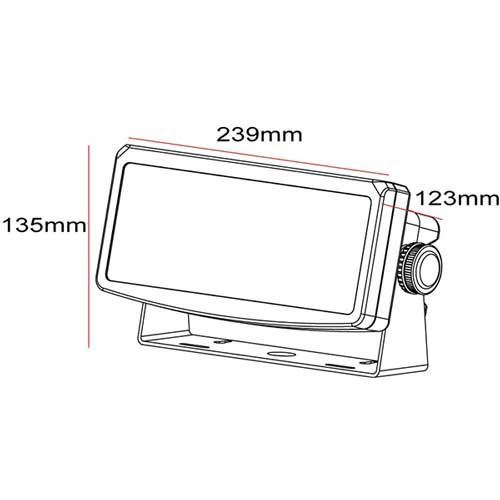

Overall Dimensions

239mm x 114mm x 101.5mm (WxDxH)

Packing

Shipping Carton: 6units/CTN; 4.9CUFT
N.W.: 15.40kg / G.W.: 20.66kg

♦  Place of Origin: MADE IN CHINA

KINGSHIP WEIGHING MACHINE CORP.
