Features
• 30mm Large LCD display
• Support Display Resolution up to 1/15000 (For non-OIML model)
• Simple Counting Function
• Weight Unit Setting: kg / pcs available
• Energy-Saving Function
• Auto Zero-Point Tracking
• Gravity-Value Setting
• External Digital-Calibration
• Low power and Charging status Indication
Specifications
|
Model/Capacity
|
Model
|
Capacity
|
Division
|
|
SSW-IN-60
|
60kg/30kg
|
20g/10g
|
|
SSW-IN-150
|
150kg/60kg
|
50g/20g
|
|
SSW-IN-300
|
300kg/150kg
|
100g/50g
|
|
SSW-IN-600
|
600kg/300kg
|
200g/100g
|
|
Display
|
30 mm
|
|
Keyboard
|
3 keys
|
|
Weighing Units
|
kg / pcs
|
|
Stabilization
|
3 sec
|
|
Tare Range
|
By subtraction up to 100% capacity
|
|
Input sensitivity
|
0.3µV/d(min.)
|
|
Load cell Excitation
|
5V DC
|
|
Load cell Drive Capacity
|
Up to 4 Load cell (350Ω)
|
|
Nonlinearity
|
0.01% of total balance
|
|
A / D Resolution
|
260,000 accounts (max)
|
|
Calibration
|
External calibration
|
|
Operating Environment
|
Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%
|
|
Power Source
|
DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz
|
|

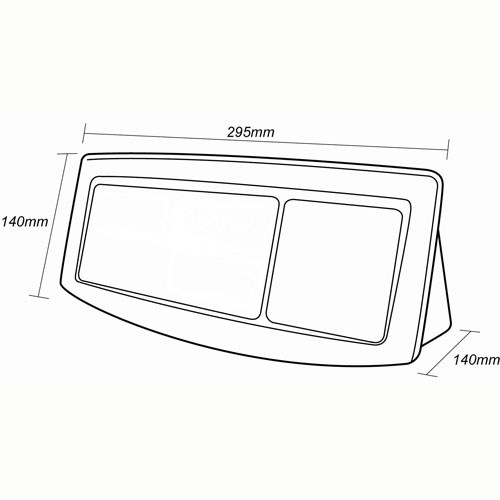

Overall Dimensions
|
295mm x 140mm x 140mm (WxDxH)
|
|
Packing
|
Shipping Carton: 6units/CTN; 3.10CUFT
N.W.: 13.80kg / G.W.:16.85kg
|
